配置表CONFIGURATION LIST

外围护体系

EXTERIOR EQUIPMENT

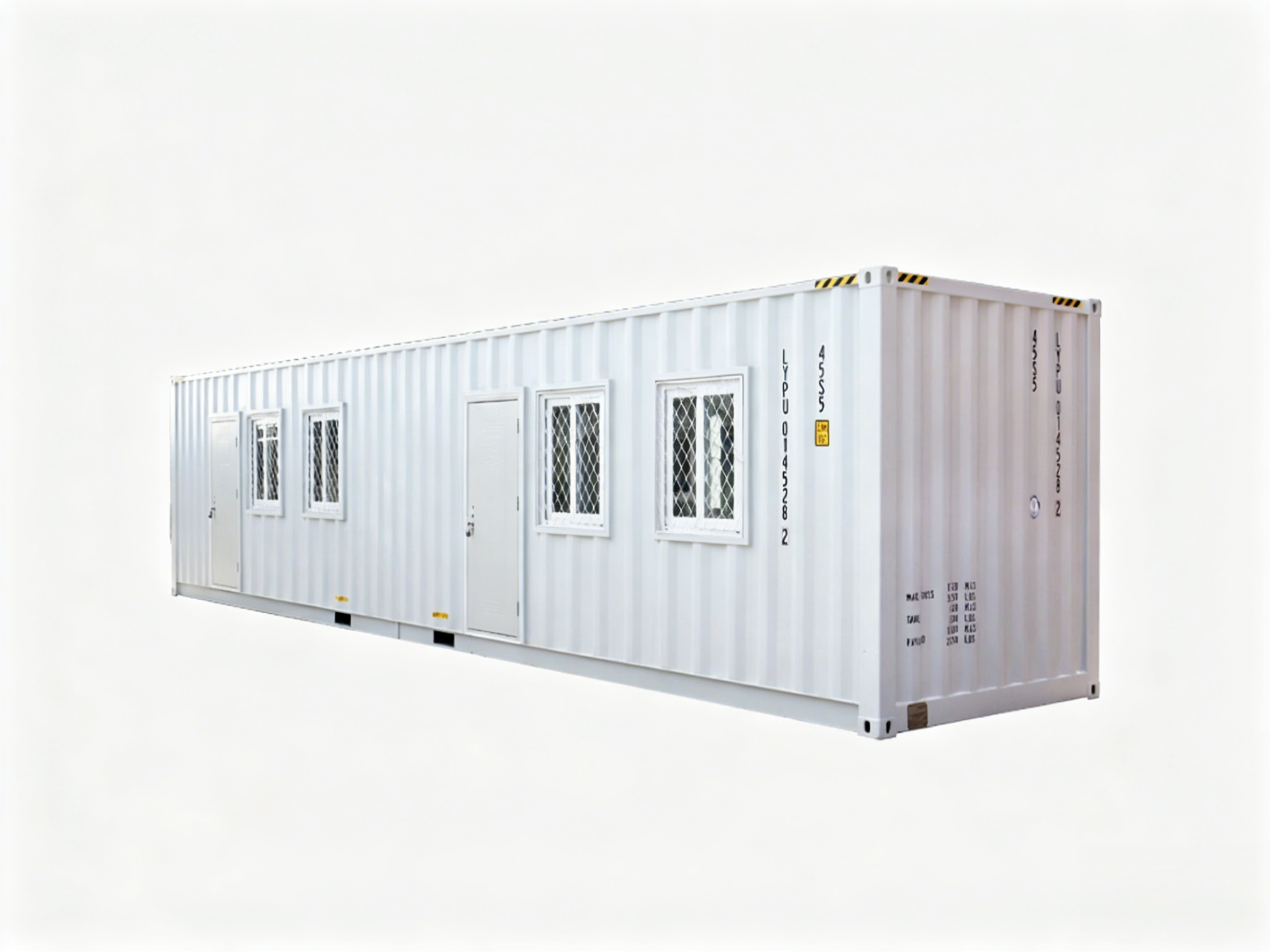

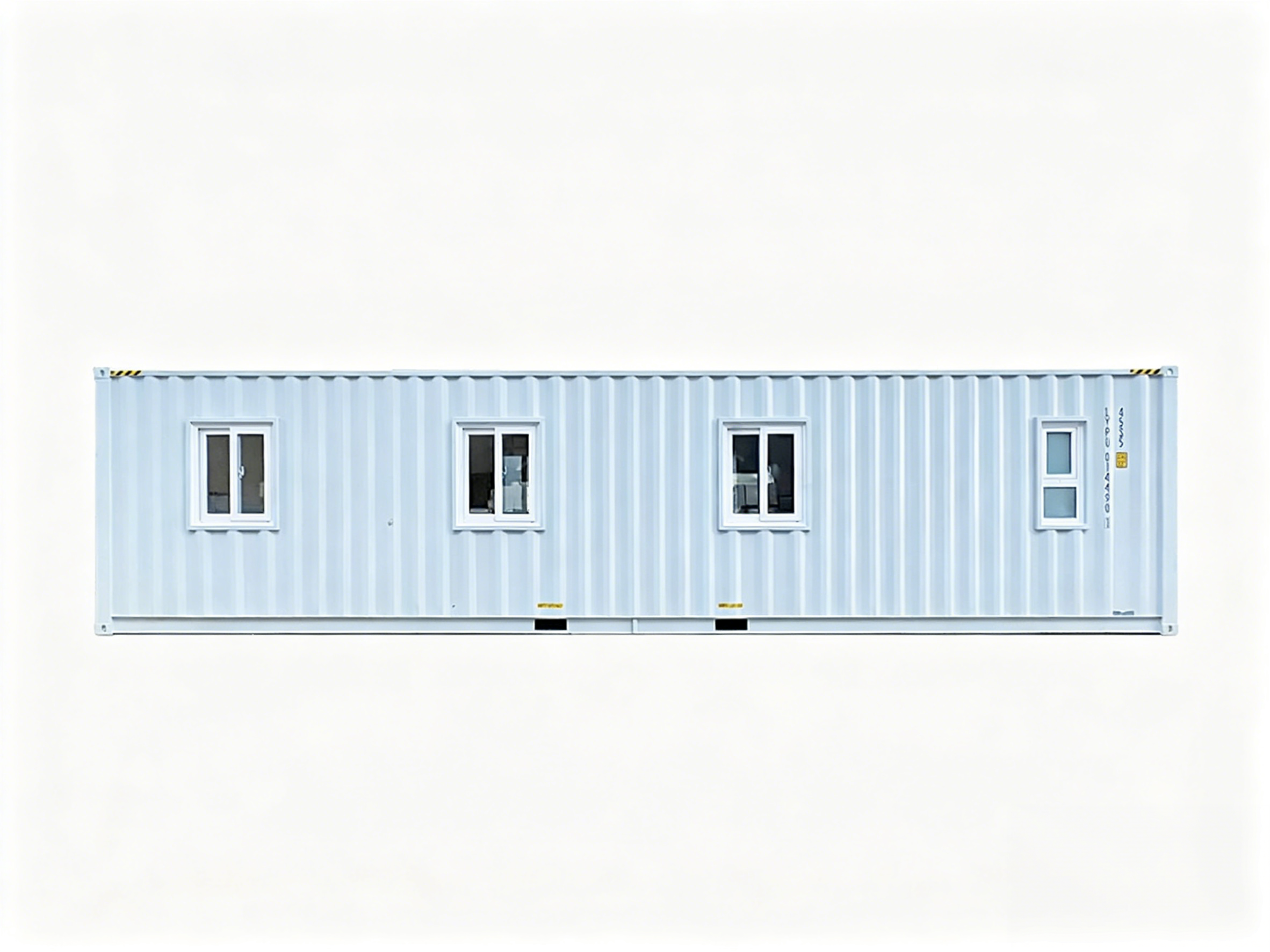

主体框架：40 尺集装箱钢结构

Main Body：40ft Container Steel Structure

墙板：45mm EPS 泡沫夹芯板 + 8mm 碳晶板

Wallboard：45mm EPS board+8mm Carbon crystal board

屋面板：45mm EPS 泡沫夹芯板 + 9mm 木塑复合板

Roof Board：45mm EPS board+9mm wood-plastic composite paltes

地板：30mm 防水基板 + 3mm PVC 地板革

Floor：30mm waterproof floor+3mm PVC leather Floor

门窗配置：断桥铝内倒窗、推拉平开窗、窗帘、防盗门、折叠门、防护纱窗

Door & Window：Broken bridge inward tilting window/pushed window/curtain/security door/folding door/security net

室内精装

INTERIOR EQUIPMENT

卫浴配套：换气扇、坐便器、洗手盆、镜柜、淋浴花洒、冷热龙头、面盆龙头、折叠隔断、地漏

Bathroom：Ventilation fan/toilet/wash basin/mirror case/shower head/faucet/basin faucet/folding partition/floor drain

家具配置：一字型橱柜（单水槽）、吊柜、大理石台面

Furniture：One-line cabinet (with single dish)/hanging cabinet/marble countertop

给排水系统：冷热水管规格 1/2 英寸；排水管管径 Φ50；马桶排污管道 Φ125

Drain off Water：cold-hot water 1/2’’/drainsΦ50/toilet discharge Φ125

配电系统：配电箱、空气开关、漏电保护器、吸顶灯、墙壁开关、普通插座、防水插座、防水插头

Power Distribution：Distribution box/circuit breaker/leakage protection/ceiling light/switch/socket/waterproof socket/waterproof plug
